DIN 6340 Heavy Duty Flat Washer
DIN 6340 Heavy Duty Flat Washer , Made of steel, Zinc plated, size M6-M48 from China Flat Washers Manufacturer.
DIN 6340 Heavy Duty Flat Washer , DIN 6340
Made of Steel , Zinc Plated , Black oxide or plain
Size: M6 – M48
 |
 |

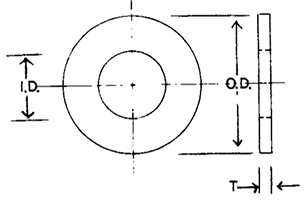

DIN 6340 Heavy Duty Flat Washer Specification:
| Size | d1 | d2 | s |
| M6 | 0.25 | 0.67 | 0.12 |
| M8 | 0.33 | 0.91 | 0.16 |
| M10 | 0.41 | 1.10 | 0.16 |
| M12 | 0.51 | 1.38 | 0.20 |
| M14 | 0.59 | 1.57 | 0.20 |
| M16 | 0.67 | 1.77 | 0.24 |
| M18 | 0.75 | 1.77 | 0.24 |
| M20 | 0.83 | 1.97 | 0.24 |
| M22 | 0.91 | 1.97 | 0.31 |
| M24 | 0.98 | 2.36 | 0.31 |
| M27 | 1.10 | 2.68 | 0.39 |
| M30 | 1.22 | 2.68 | 0.39 |
| M36 | 1.50 | 3.15 | 0.47 |
| M42 | 1.73 | 3.94 | 0.59 |
| M48 | 1.97 | 4.33 | 0.67 |
