DIN 980V Stover Cone Lock Nut
DIN 980V Stover Cone Lock Nut, hex lock nut with cone shape, Material by steel, Class 8/10, Zinc plated, size M4-M20 from China Lock Nut Manufacturer.
 |
 |
DIN 980V Stover Cone Lock Nut
Made of Steel, Class 8/10 , Zinc plated
Size: M4-M20

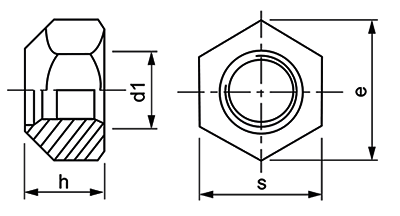

| Size | Pitch | Fine | S | H | M |
| M4 | 0.7 | – | 7 | 4 | 2.5 |
| M5 | 0.8 | – | 8 | 5 | 3.5 |
| M6 | 1 | – | 10 | 6 | 4.5 |
| M8 | 1.25 | 1 | 13 | 8 | 6 |
| M10 | 1.5 | 1.25 | 17 | 10 | 7.5 |
| M12 | 1.75 | 1.5 | 19 | 12 | 8.5 |
| M14 | 2 | 1.5 | 22 | 14 | 11.5 |
| M16 | 2 | 1.5 | 24 | 16 | 12.5 |
| M18 | 2.5 | 2 | 27 | 18 | 14 |
| M20 | 2.5 | 2 | 30 | 20 | 15.4 |
| M22 | 2.5 | 2 | 32 | 22 | 16.9 |
| M24 | 3 | 2 | 36 | 24 | 18.5 |
| M27 | 3 | 2 | 41 | 27 | 20.8 |
| M30 | 3.5 | 2 | 46 | 30 | 23.1 |
